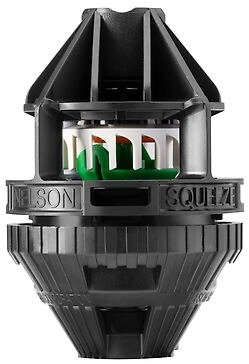

NELSON - R2000 K2 9° GREEN PLATE, .85 2000FC

The R2000 Rotator uses proven Rotator® Technology to provide high uniformity without the riser vibration or splash down associated with impact sprinklers.

Applications include: under-tree irrigation and environmental control of tree fruit, vine, and tree nut crops — as well as overhead irrigation, cooling, and environmental control in tree, vine, small fruit, and nursery crops.

GREEN PLATE

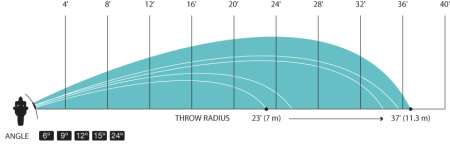

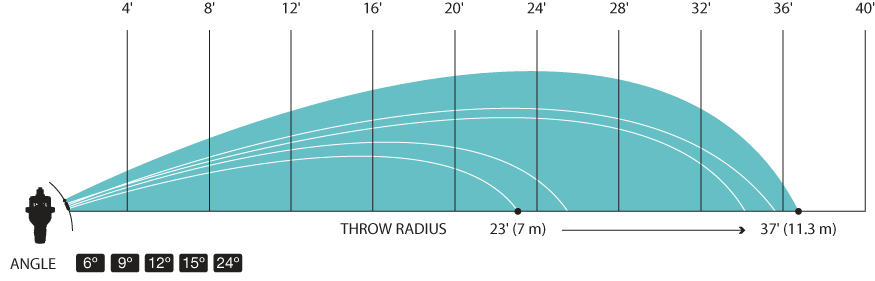

The Green plate is a great option for an under tree sprinkler, with a little more stream height and radius then then 6 degree plates, but will still work with the smallest R2000 nozzles.

FLOW CONTROL NOZZLE
- Constant flow over a range of pressure
- Increases field uniformity
- Low cost, high value

Within the recommended pressure range of 30-60 PSI (2.0-4.0 BAR), the .85 2000 FC flow control nozzle is flow regulating within a flow range of no more than 3.5% greater and 8% less than the nominal flow of .85 GPM (193 LPH).

Zonder adapter
