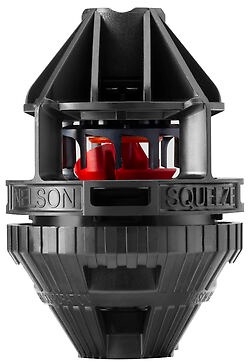

NELSON - R2000 K3 15° RED PLATE, 1.25 2000FC

The R2000 Rotator uses proven Rotator® Technology to provide high uniformity without the riser vibration or splash down associated with impact sprinklers.

Applications include: under-tree irrigation and environmental control of tree fruit, vine, and tree nut crops — as well as overhead irrigation, cooling, and environmental control in tree, vine, small fruit, and nursery crops.

RED PLATE
The Red plate for the R2000 is a very common under tree plate, pairing with the #12 purple nozzle at 1.5 gpm when operating at 35 psi.

FLOW CONTROL NOZZLE
- Constant flow over a range of pressure
- Increases field uniformity
- Low cost, high value

Within the recommended pressure range of 30-60 PSI (2.0-4.0 BAR), the 1.25 2000 FC flow control nozzle is flow regulating within a flow range of no more than 3.5% greater and 8% less than the nominal flow of 1.25 GPM (284 LPH)

Zonder adapter
