Item number: 11936-001

NELSON - R75 ROTATOR, NPT

€464.00Excluding VAT

Availability: in stock 6

Connection
1 1/4" NPT
Weight
1,73 kg
Flow
6,80 - 15,40 m3/hour
Radius
17,40 - 20,40 meter
Workpressure
2,80 - 4 Bar
Nozzle range
52 - 72 mm

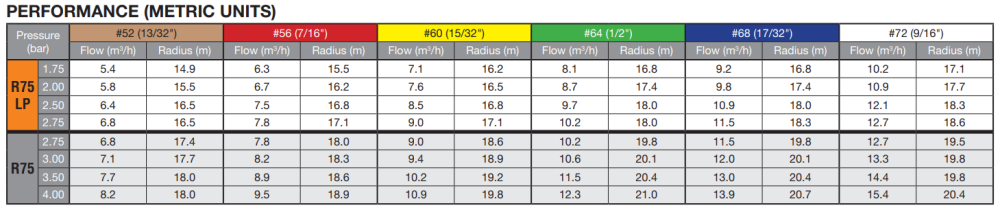

R75: 40-60 PSI (2.8-4.0 BAR)

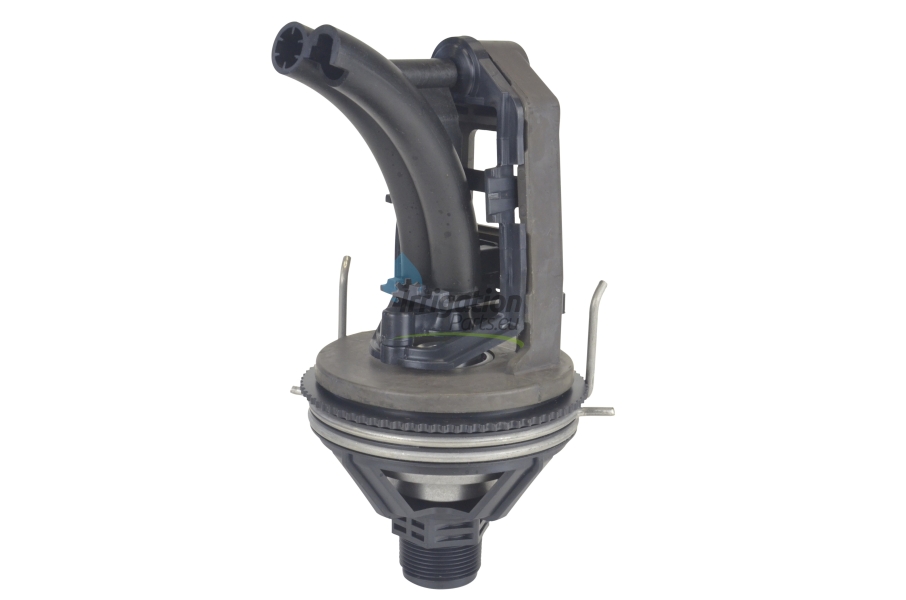

Introducing the new R75 END OF PIVOT SPRINKLER.
This versatile, high-uniformity sprinkler is based on field-proven Rotator® Technology. The R75 and R75LP (low pressure option) help fill in the corners and gain added ground ... up to 21 m (70 feet).

Features include an easy to access nozzle, dual barrel spray plate for distance & uniformity and adjustable stops to achieve best arc of coverage.

Available with NPT or BSP connections.

Combine this body with a 7TN nozzle
Nozzles: #52 - #72
See related products below (12178-xxx)
